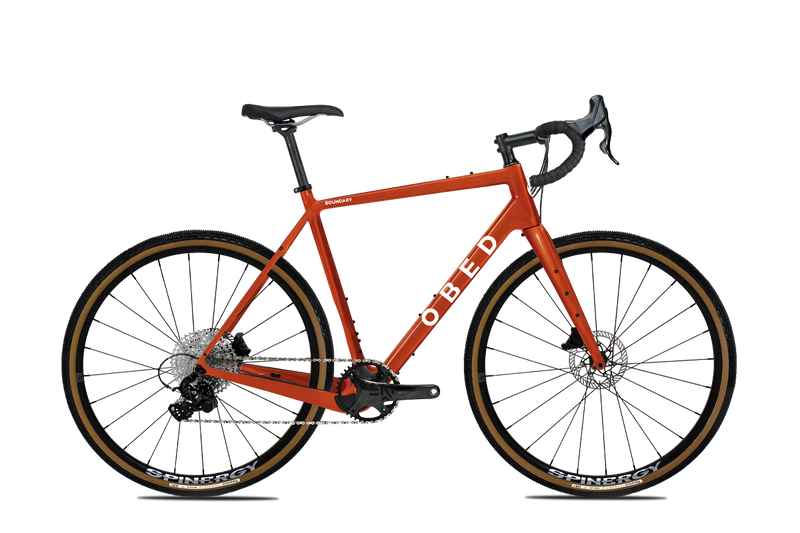

A rugged and dependable gravel bike ready to kick up some dust as you redefine what’s rideable. The Boundary has the geometry of a road bike with the heart and handling of a trail bike so you can rumble confidently across all kinds of mixed terrain.
According to the Federal Highway Administration, there are 1.4 million miles of unpaved roads in the U.S. just waiting to be explored—and we haven’t even looked up the international mileage. So take the roads less traveled, or the ones that don’t even show up on the map. Are you ready to push your boundaries?
This Bike Is For You If...
You're looking for an epic carbon-fiber gravel bike that won't break the bank. You'll be able to run 700c or 650b tires with plenty of clearance, install up to three water bottle mounts and racks in the front and rear.
*Max packed out weight — 300 lbs.
18.5lbs / 8.39kg*
*Including 700c wheels on size medium bike.
Campy Ekar 1x13
|Headset||Cane Creek 40 Series|
|Handlebar||FSA A-Wing AGX Alloy|
FSA SL-K Carbon
|Saddle||WTB Volt Medium Cromoly|
|Rotors||Campy Ekar 160mm Center Lock|
|Rear Derailleur||Campy Ekar|
|Crankset||Campy Ekar 40T|
|Cassette||Campy Ekar 10-44|
|Bottom Bracket||Campagnolo Bottom Bracket|
|Tires||Panaracer Gravel King SS 700x43c Tubeless|
|Tubeless Sealant||Stan’s No Tubes|
|Wheelset||Select Wheels Above|
|Brakeset||Camp Ekar Hydraulic
Boundary Carbon, Multiple Rack/Fender/Cargo Mounts
*COVID availability advisory: Due to high demand during COVID-19, our industry is working hard to keep up with all parts, components and accessories. Your purchase may include unavailable parts. At that point, we will replace them with equal or better parts. Please reach out via LiveChat or email if you have any questions.
Bar, Stem + Crank Specs
|Size XS, S||Bar: 42cm; Stem: 90mm; Crank: 170|
|Size M||Bar: 44cm; Stem: 100mm; Crank: 172.5|
|Size L, XL||Bar: 46cm; Stem: 110mm; Crank: 172.5|
|Frame Material||Carbon Fiber|
|Max Tire Size||700x45c or 650x53|
|Front Axle Specs||12x1.5x120mm|
|Rear Axle Specs||12x1.5x172mm|
|Seat Collar Diameter||31.8mm|
|Max Chainring Size||52/36t|
|Rotor Max Size (Front)||180mm|
|Rotor Max Size (Rear)||160mm|
|Front Derailleur Mount||Braze-on|
|Water Bottle Mounts||Yes|
|Toptube Bag Mounts||Yes|
|Downtube Accessory Mount||Yes|
|Rigid Fork Length||395mm|
Size Chart & Geometry
|Top Tube Length (mm)||520||535||550||565||580|
|Head Tube Length (mm)||120||140||150||170||190|
|Seat Tube Angle||74.5˚||74.0˚||73.0˚||73.0˚||73.0˚|
|Head Tube Angle||70.5˚||
|BB Drop (mm)||67||67||67||67||67|
|Chainstay Length (mm)||435||435||435||435||435|
|Front Center (mm)||594||595||600||611||626|
|Standover Height (cm)||75.9||78.6||80.3||82.3||84.3|
|Fork Axle to Crown (mm)||395||395||395||395||395|
|Fork Rake (mm)||50||50||50||50||50|
|Seat Tube Length (mm)||490||520||540||560||580|
Shipping & FAQ
Shipping & Delivery Options
Obed bikes ship pre-assembled factory direct to your doorstep with a super simple setup process or delivered fully built by a technician. Learn more about our Domestic and International Shipping & Delivery Options.
Have more Shipping Questions? Check out our frequently asked shipping questions.
What should I do if I am between on two sizes?
If you can achieve your required seat height with both bikes sizes, then you can pick based on your riding preference or style. The smaller frame will be more nimble while the larger bike may feel higher and faster. LiveChat with us or email us for help finding the right size.
How do I mount accessories onto my Obed?
Our Baseline and Boundary models have various mounting points for a multitude of accessories available on the market.
For nutrition and hydration, our water bottle and top tube storage mounts can be used with most 2-hole accessories designed for M5 x 0.8mm mounts spaced 65mm apart. The screws provided with the frame are 10mm long and should be replaced with longer screws should your accessory mounting bracket be more than 3mm thick.
At the rear of the bike, we have provided fender and light rack mounting points. Unlike many metal bikes which may have open ended mounting points, our carbon fiber frames have closed end mounting points. This requires special attention to the length of screw when mounting racks and fenders with various thickness attachments. Should the accessory mounting point be more than 2mm thick, source screws that are 10-13mm longer than the thickness of the item you’re attaching.
For fork mounted accessories, the same rules apply as mounting to our seatstays and dropouts.
We recommend a 20lb load weight limit.
What is your Return Policy?
Put your new bike to the test with our 30 day return policy. If it's not for you, just box it up the way you received it and contact our support team for further instruction.
