Boundary GRX 810 - Size S

Name: Boundary GRX 810 - Size S
Brand: Obed Bikes
SKU: OB-458
Price: 2499.0 USD
Availability: InStock

$2,499.00 $3,639.00

In stock Out of stock

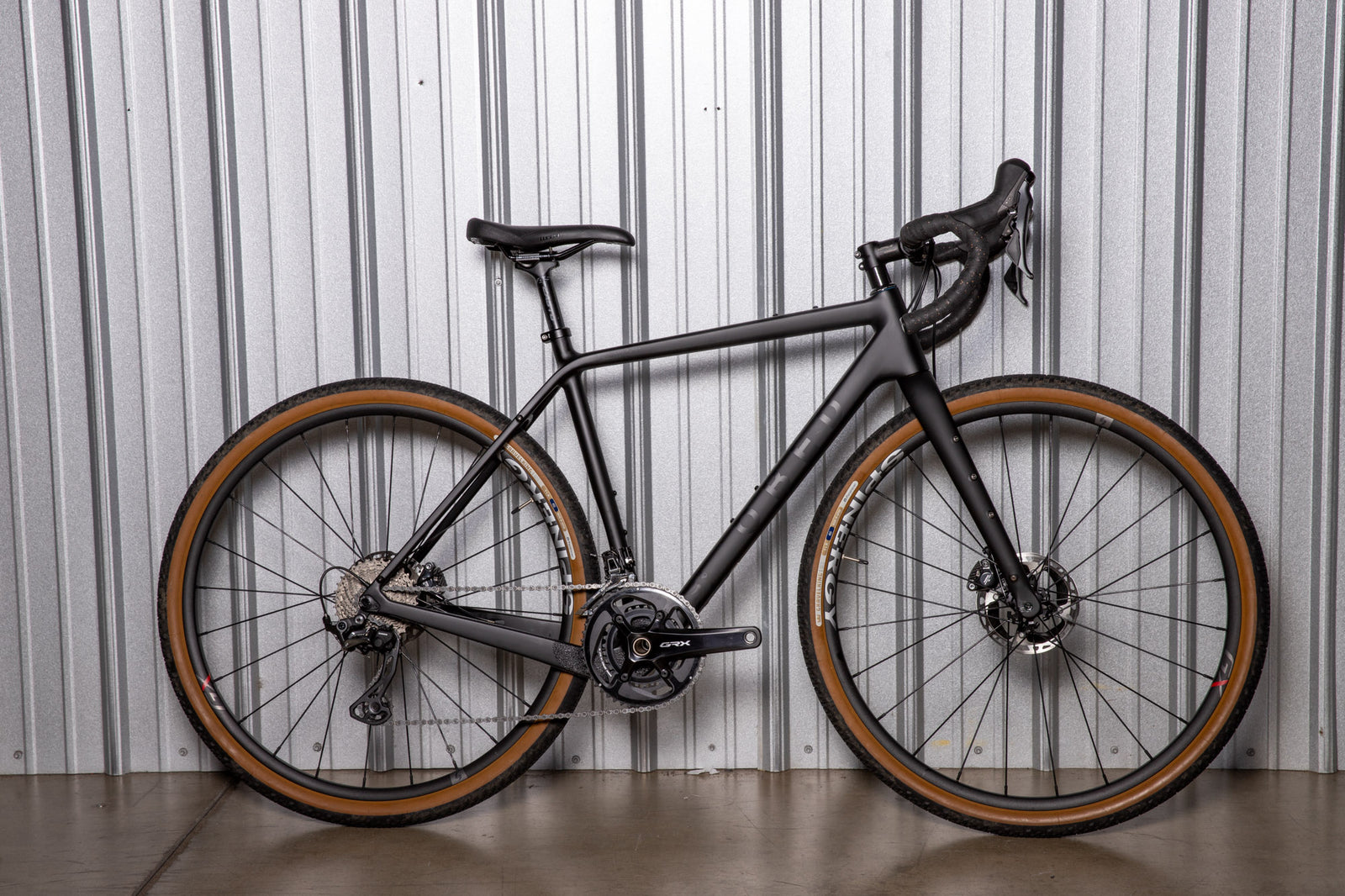

Boundary GRX810 2X11, Spinergy GX Alloy, shadow/black size S

Review our Return policy.

Explore the details

The original OBED gravel bike, with unbeatable value and customization options to build your foundation for exploration.

Bar, Stem + Crank Specs

Size XS - Bar: 42cm; Stem: 90mm; Crank: 170

Size S - Bar: 42cm; Stem: 90mm; Crank: 170

Size M - Bar: 44cm; Stem: 100mm; Crank: 170

Size L – Bar 44cm; Stem 110; Crank 172.5

Size XL - Bar: 46cm; Stem: 110mm; Crank: 175

	XS	S	M	L	XL
Top Tube Length	520mm	535mm	550mm	565mm	580mm
Head Tube Length	120mm	140mm	150mm	170mm	190mm
Seat Tube Angle	74.5˚	74.0˚	73.0˚	73.0˚	73.0˚
Head Tube Angle	70.5˚	71.0˚	71.5˚	72.0˚	72.0˚
BB Drop	67mm	67mm	67mm	67mm	67mm
Chainstay Length	435mm	435mm	435mm	435mm	435mm
Wheelbase	1020mm	1021mm	1026mm	1037mm	1052mm
Front Center	594mm	595mm	600mm	611mm	626mm
Standover Height	75.9cm	78.6cm	80.3cm	82.3cm	84.3cm
Fork axle to crown	395mm	395mm	395mm	395mm	395mm
Fork rake	50mm	50mm	50mm	50mm	50mm
Seat Tube Length	490mm	520mm	540mm	560mm	580mm
Reach	371mm	375mm	376mm	385mm	394mm
Stack	537mm	557mm	568mm	590mm	609mm

152cm 4'11" - 163cm 5'4"

160cm 5'2" - 170cm 5'6"

168cm 5'6" - 178cm 5'10"

175cm 5'8" - 185cm 6'

183cm 6' - 193cm 6'3"

We can install a gravel suspension fork as a custom component request. The Boundary, however, does not use suspension-corrected geometry, so be aware that a suspension fork will lift the front end, altering the geometry and handling.

Yes! The Boundary has built-in rear rack mounts. Rigid forks come with additional gear mounts on the fork legs.

The Boundary comes with tubeless-ready wheels and tires and is shipped set up tubeless with sealant from the factory.

The Boundary fits tires up to 700c x 45mm wide or 650b x 53mm wide.

The Boundary is our most versatile entry-level gravel bike, built for riders who want to explore gravel roads without breaking the bank. It uses a purpose-built frame with robust yet compliant carbon lay-up, and geometry tuned for comfort, making it perfect for long-distance adventures and general gravel riding.

Yes! The Boundary is a do-it-all bike and will be competent on the road. If you choose to install road tires on your Boundary, we recommend using tires at least 700c x 32mm wide to reduce the effect smaller tires will have on the geometry.

Yes! The Boundary can be used as a gravel racer, and it has been successfully raced at many of the world's biggest gravel events. While it’s not as light or stiff as our race-focused GVR, the Boundary will provide nearly the same performance for less.

If you're on the border of two sizes, the right size may depend on certain body measurements and your riding style. Feel free to contact us at any time regarding sizing questions - our product specialists are experienced with finding riders the right fit by cross-referencing your information with our fit database.

If you're not transferring measurements from a similar bike, to get completely "dialed in" for maximum performance, we recommend you see a reputable professional bike fitter that can fit you to your new bike.

Custom requests can be submitted through the “Component Requests” box in our bike builder, or you can contact us at any time to inquire about custom requests. A member of our team will reach out for additional information. All custom requests are subject to availability, and additional charges may apply.
