OBED ADVENTURE GRAVEL

Boundary

Gravel should have no boundaries.

Load up for an epic cross-country bikepacking adventure. Cruise backroads with friends. Or pin on a plate for race day. The Boundary is ready to do it all. Explore, race, wander, or roam. However you want to start your next adventure, the Boundary is prepared to play.

Integration
Performance Value
Save on adventure with high-quality carbon frames and more affordable builds.
Diagram of an acute angle
All Day Compliance
Ride longer with a frame engineered to absorb vibration and enhance comfort.
Extreme Customization
Fully Customizable
Make it yours by choosing from the best components and the most vibrant colors.

The Gateway to Adventure

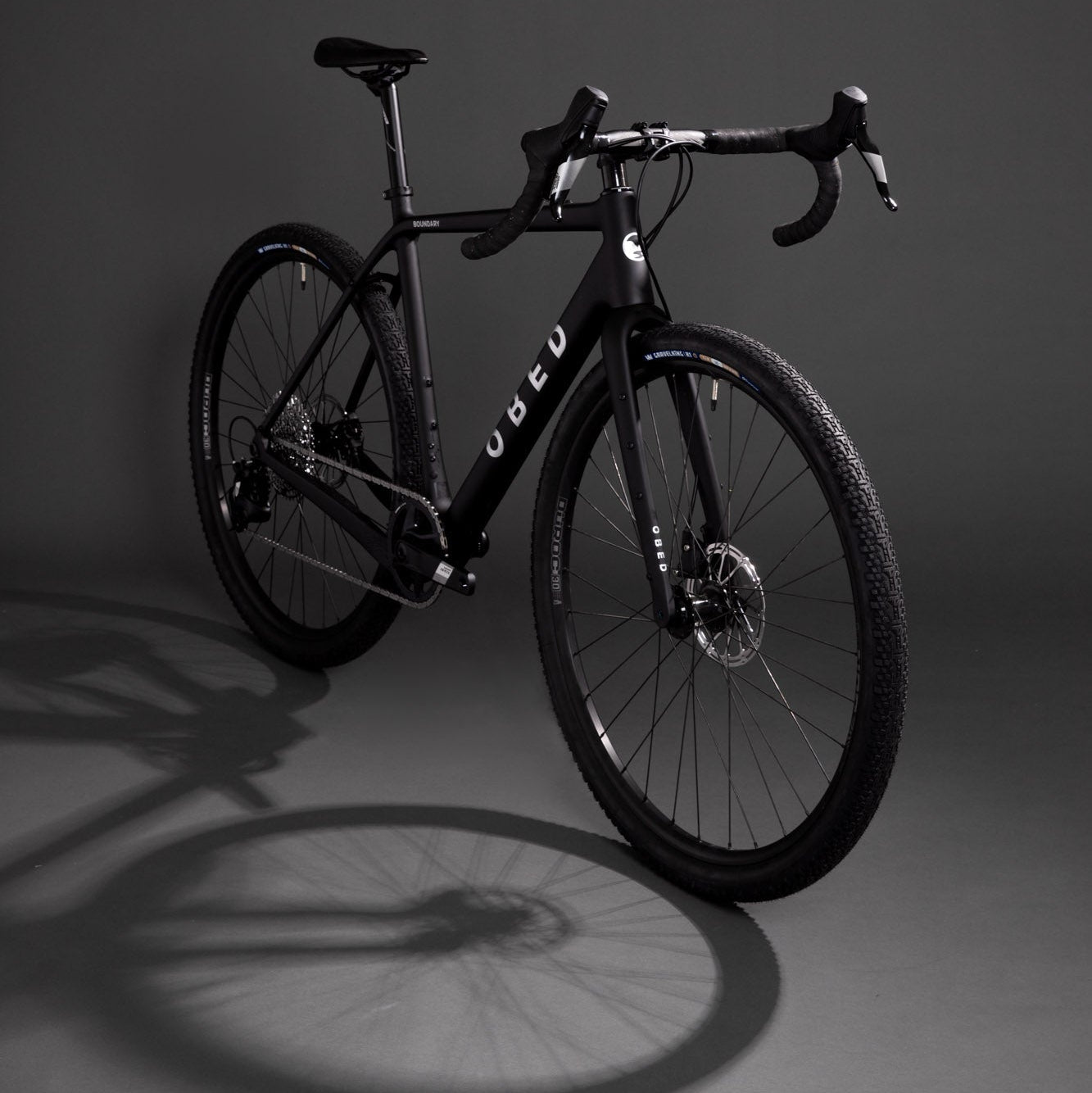

Boundary

The original OBED gravel bike, with unbeatable value and customization options to build your foundation for exploration.
  • Unbeatable value
  • Outstanding versatility
  • 50mm tire clearance

Load ‘em Up.

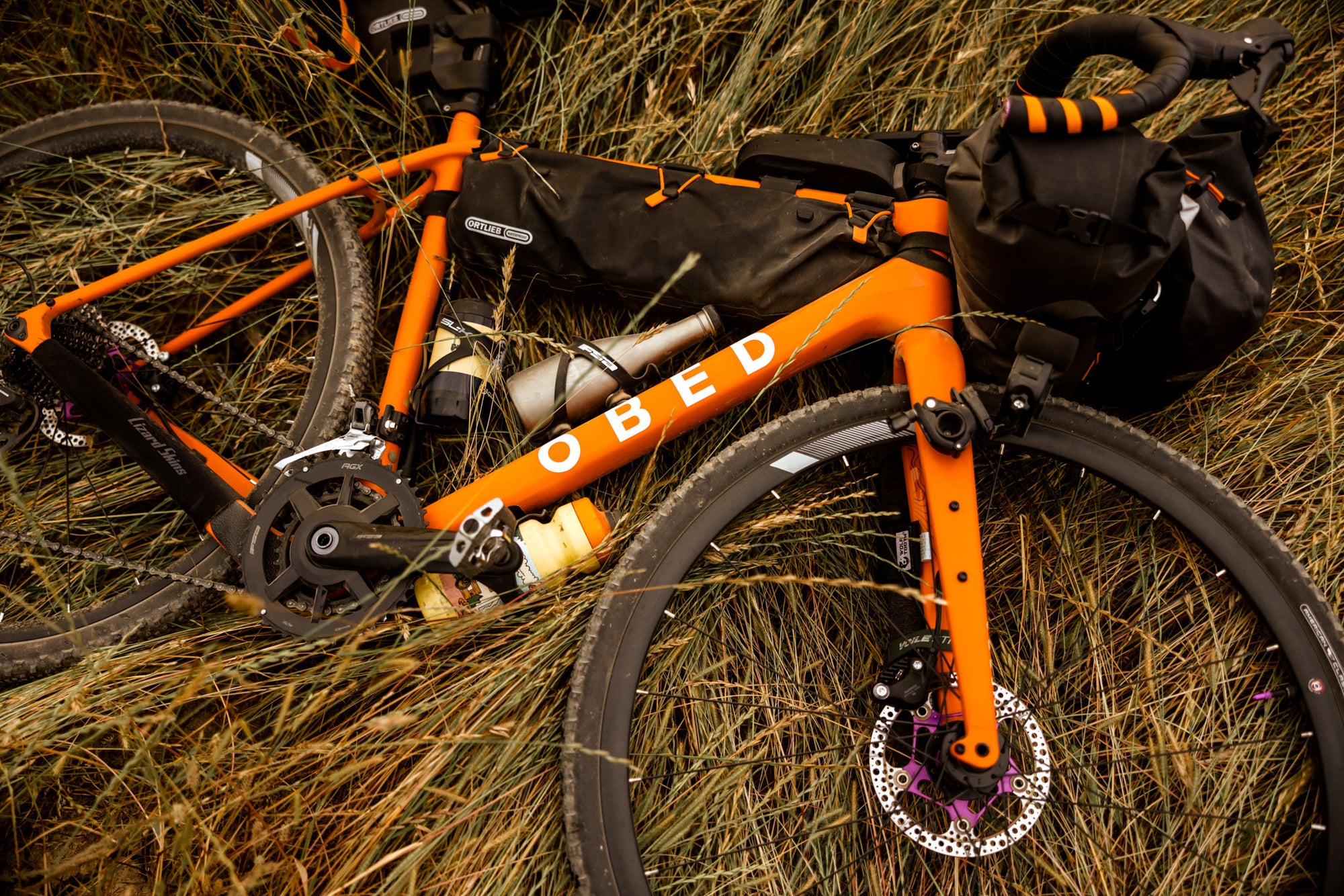

With built-in fender mounts, rack mounts, storage for up to three bottles, and more, the Boundary is ready for big bikepacking escapades. If your idea of gravel means venturing far from home, the Boundary will take you there and beyond.

Stable Handling for Every Ride.

Whether you're out for a lazy weekend cruise or searching for high-speed thrills on race day, the Boundary delivers. The Boundary features modern gravel geometry that’s stable at any speed and perfect for navigating the rough stuff with ease and comfort.

Wildly Versatile.

The Boundary is designed with tire clearance to handle the demands of a wide variety of gravel surfaces. Choose 700c x 45mm tires for maximum speed on smooth to technical terrain. Or enjoy high-volume 650b x 50mm tires for maximum comfort and traction.

Built for You.

A bike is more than just a bike.

It’s joy, self-expression, and freedom. We understand what bikes mean to riders because we feel the same way. That’s why OBED strives to give everyday riders a pro-level experience by building their dream bike to their exact specifications. Customize your bike with your preferred groupset, components, paint color, and decals.

Explore the details

The original OBED gravel bike, with unbeatable value and customization options to build your foundation for exploration.

Bar, Stem + Crank Specs

Size XS - Bar: 42cm; Stem: 90mm; Crank: 170

Size S - Bar: 42cm; Stem: 90mm; Crank: 170

Size M - Bar: 44cm; Stem: 100mm; Crank: 170

Size L – Bar 44cm; Stem 110; Crank 172.5

Size XL - Bar: 46cm; Stem: 110mm; Crank: 175

XS S M L XL
Top Tube Length 520mm 535mm 550mm 565mm 580mm
Head Tube Length 120mm 140mm 150mm 170mm 190mm
Seat Tube Angle 74.5˚ 74.0˚ 73.0˚ 73.0˚ 73.0˚
Head Tube Angle 70.5˚ 71.0˚ 71.5˚ 72.0˚ 72.0˚
BB Drop 67mm 67mm 67mm 67mm 67mm
Chainstay Length 435mm 435mm 435mm 435mm 435mm
Wheelbase 1020mm 1021mm 1026mm 1037mm 1052mm
Front Center 594mm 595mm 600mm 611mm 626mm
Standover Height 75.9cm 78.6cm 80.3cm 82.3cm 84.3cm
Fork axle to crown 395mm 395mm 395mm 395mm 395mm
Fork rake 50mm 50mm 50mm 50mm 50mm
Seat Tube Length 490mm 520mm 540mm 560mm 580mm
Reach 371mm 375mm 376mm 385mm 394mm
Stack 537mm 557mm 568mm 590mm 609mm
Xs
152cm 4'11" - 163cm 5'4"
S
160cm 5'2" - 170cm 5'6"
M
168cm 5'6" - 178cm 5'10"
Ml
175cm 5'8" - 185cm 6'
L
183cm 6' - 193cm 6'3"

We can install a gravel suspension fork as a custom component request. The Boundary, however, does not use suspension-corrected geometry, so be aware that a suspension fork will lift the front end, altering the geometry and handling.

Yes! The Boundary has built-in rear rack mounts. Rigid forks come with additional gear mounts on the fork legs.

The Boundary comes with tubeless-ready wheels and tires and is shipped set up tubeless with sealant from the factory.

The Boundary fits tires up to 700c x 45mm wide or 650b x 53mm wide.

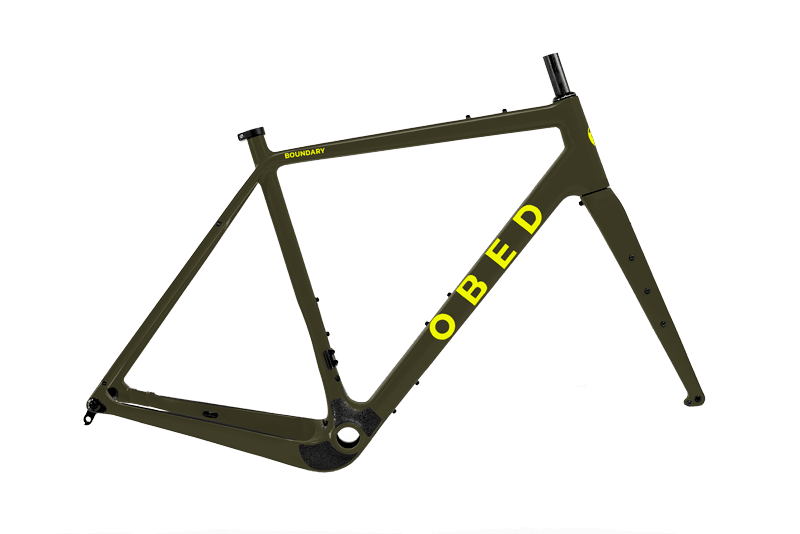

The Boundary is our most versatile entry-level gravel bike, built for riders who want to explore gravel roads without breaking the bank. It uses a purpose-built frame with robust yet compliant carbon lay-up, and geometry tuned for comfort, making it perfect for long-distance adventures and general gravel riding.

Yes! The Boundary is a do-it-all bike and will be competent on the road. If you choose to install road tires on your Boundary, we recommend using tires at least 700c x 32mm wide to reduce the effect smaller tires will have on the geometry.

Yes! The Boundary can be used as a gravel racer, and it has been successfully raced at many of the world's biggest gravel events. While it’s not as light or stiff as our race-focused GVR, the Boundary will provide nearly the same performance for less.

If you're on the border of two sizes, the right size may depend on certain body measurements and your riding style. Feel free to contact us at any time regarding sizing questions - our product specialists are experienced with finding riders the right fit by cross-referencing your information with our fit database.

If you're not transferring measurements from a similar bike, to get completely "dialed in" for maximum performance, we recommend you see a reputable professional bike fitter that can fit you to your new bike.

Custom requests can be submitted through the “Component Requests” box in our bike builder, or you can contact us at any time to inquire about custom requests. A member of our team will reach out for additional information. All custom requests are subject to availability, and additional charges may apply.
