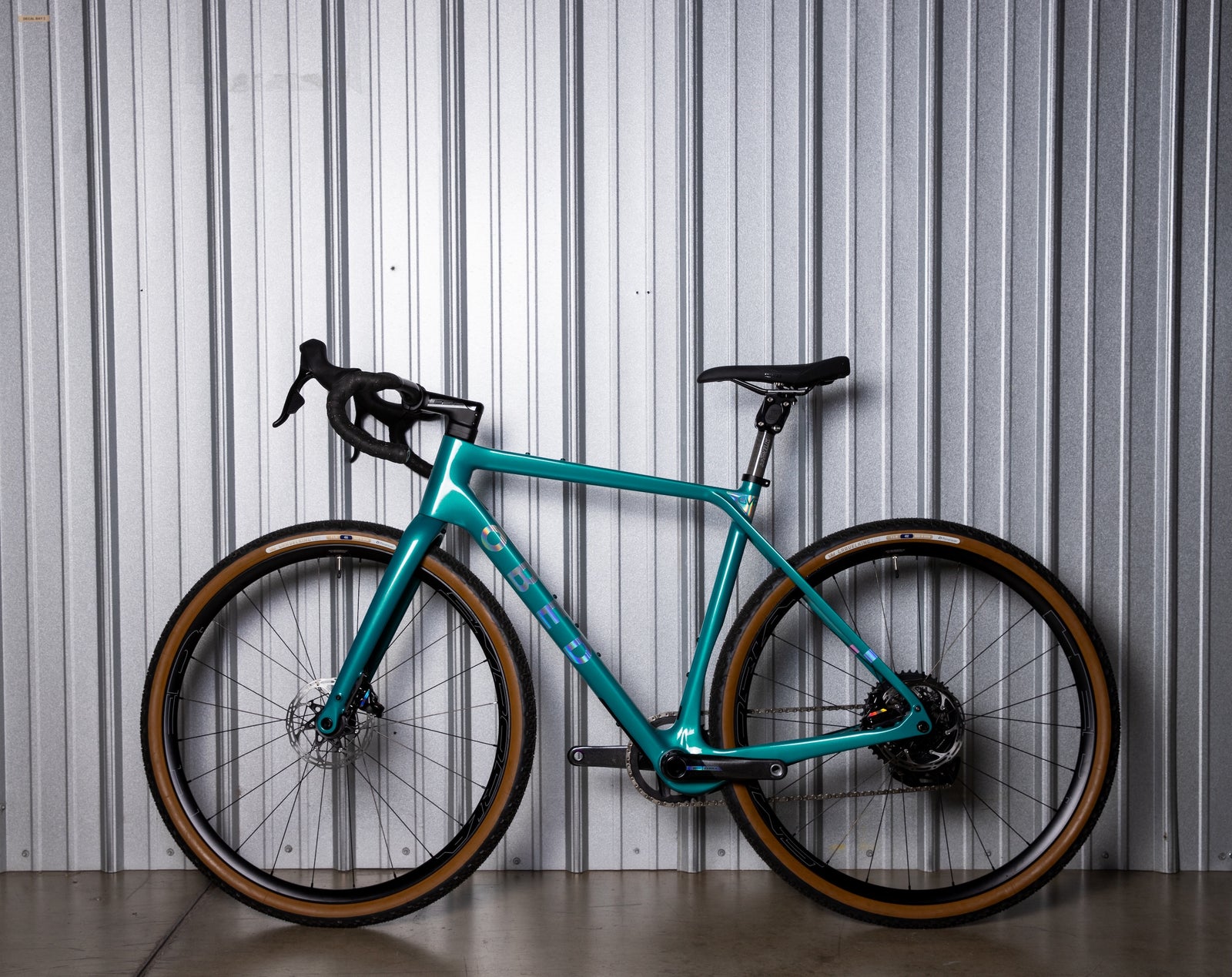

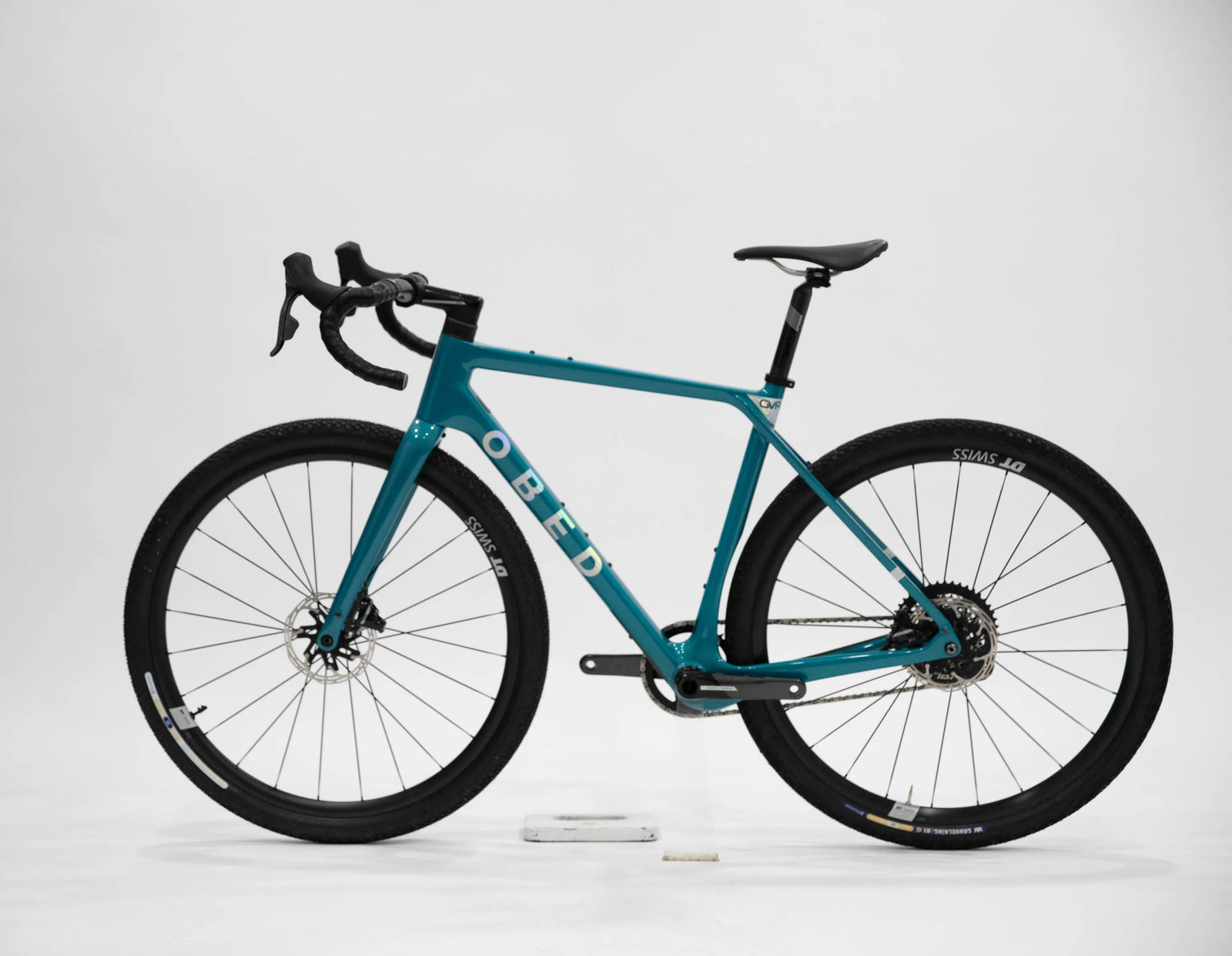

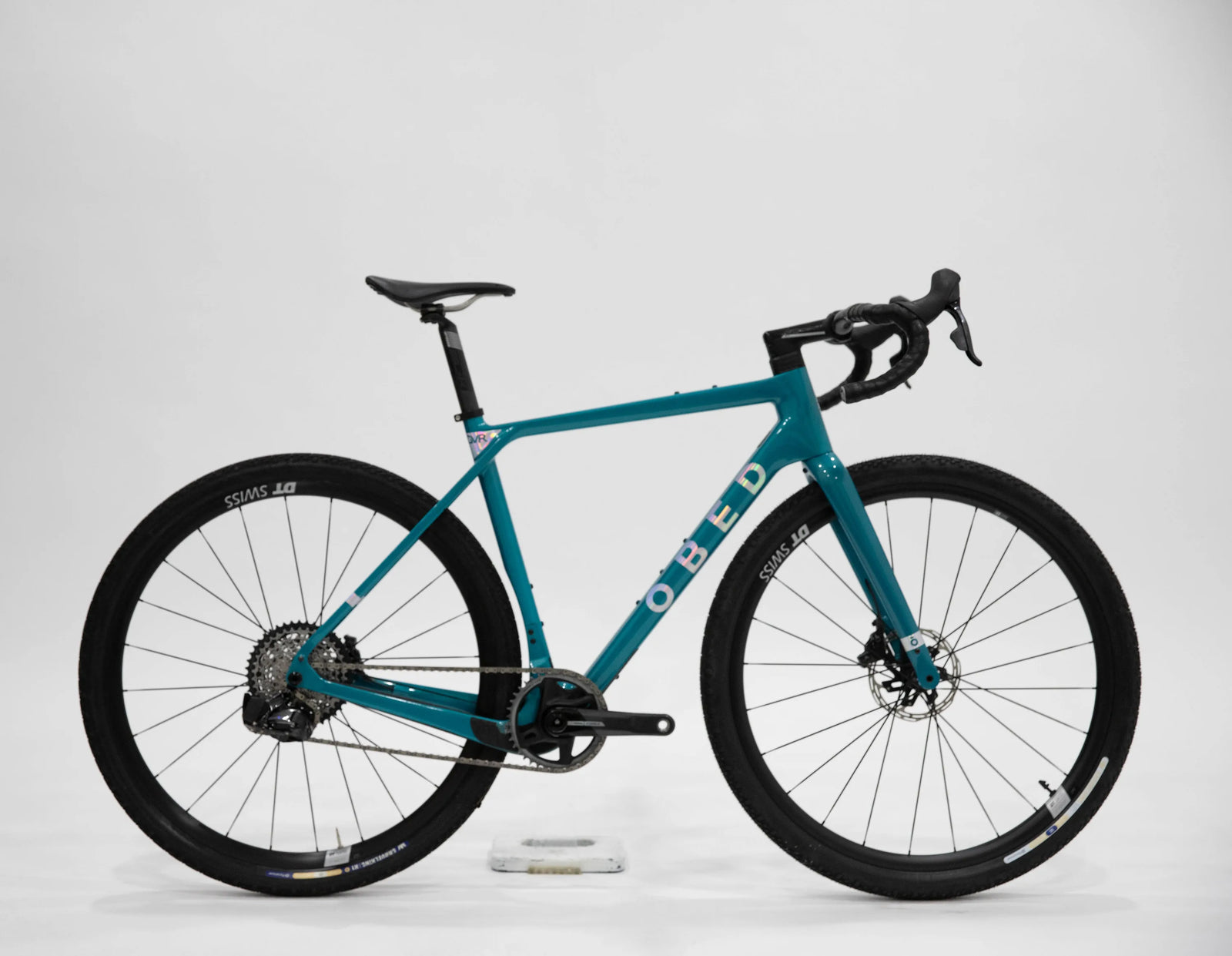

GVR Gen 1 SRAM Force AXS D2 12 spd | Size MD

The GVR is our lightweight gravel race bike, built for riders who want a competitive advantage on fast gravel roads. It uses a lightweight frame with an efficient yet compliant carbon lay-up and geometry tuned for agility and control, making it perfect for high-speed endurance gravel riding and racing.

The GVR frame fits tires up to 700c x 49mm wide in the rear triangle. The GVR carbon adventure gravel fork fits tires up to 700c x 53mm.

Yes! The GVR is also fast and efficient on the road. If you choose to install road tires on your GVR, we recommend using tires at least 700c x 32mm wide to reduce the effect smaller tires will have on the geometry.

The GVR comes with tubeless-ready wheels and tires and is shipped set up tubeless with sealant from the factory.

The GVR does not have built-in rack mounts, but rack mounts can be added to the GVR frame by purchasing a Removable Rack/Fender seatstay bridge hardware kit. This kit allows you to install fenders and/or a rack.

We can install a gravel suspension fork as a custom component request. The GVR, however, does not use suspension-corrected geometry, so be aware that a suspension fork will lift the front end, altering the geometry and handling.

To modify the GVR for external routing, submit a custom component request.

Watch the video below:

To mount your OBED bike to a direct drive stationary trainer, follow these steps:

1. Shift into the bike's hardest gear

2. Remove the rear thru axle

3. Remove the rear wheel

4. Place the frame onto the direct drive trainer, ensuring the chain falls onto the cassette and the rear axle dropouts are aligned with the trainer hub end caps.

5. Reinstall the rear thru-axle and tighten.

Notes:

We recommend shifting into the hardest gear before removing the rear wheel to make it easier to remove the rear wheel and position your bike for installation on the trainer.

Mounting a bike to a direct drive trainer is very similar to installing a rear wheel. You may need to swing the rear derailleur back to direct the chain onto the cassette cogs. If you have a rear derailleur with an adjustable clutch, turn the clutch off to be able to articulate the rear derailleur.

Ensure the rear axle dropouts of the frame are aligned with the endcaps on the trainer, and that the chain is properly routed before reinstalling the rear axle and using your direct drive to prevent damage.

Ensure the rear cassette on your direct drive trainer is compatible with your bike's drivetrain to prevent damage. (E.g., you must use a 12-speed Shimano cassette with a 12-speed Shimano drivetrain and a 12-speed SRAM cassette with 12-speed SRAM drivetrains.)

If you're on the border of two sizes, the right size may depend on certain body measurements and your riding style. Feel free to contact us at any time regarding sizing questions - our product specialists are experienced with finding riders the right fit by cross-referencing your information with our fit database.

If you're not transferring measurements from a similar bike, to get completely "dialed in" for maximum performance, we recommend you see a reputable professional bike fitter that can fit you to your new bike.

Custom requests can be submitted through the “Component Requests” box in our bike builder, or you can contact us at any time to inquire about custom requests. A member of our team will reach out for additional information. All custom requests are subject to availability, and additional charges may apply.

The maximum recommended load of 3 kg (6.6 lbs) per leg when attaching items to the accessory mounts on the OBED Rigid Carbon Gravel Fork with Accessory Mounts
