RVR

$2,795.00

Watch how easy our bikes are to assemble.

Components

105 12 Spd Components

Headset	FSA 55R ACR
Stem	FSA SMR
Handlebar	Select Bar Above
Seatpost	RVR Seatpost
Saddle	Fizik Vento Argo R5
Shifters	Shimano R7120
Rotors	Shimano MT800 160mm
Front Derailleur	Shimano 105 R7100
Rear Derailleur	Shimano 105 R7100
Crankset	Shimano 105 R7100 50/34 12 spd
Cassette	Shimano 105 R7100 11-34 12 spd
Chain	Shimano M7100 12 spd
Bottom Bracket	T47 Outboard
Tires	Select Above
Tubeless Sealant	Stan’s No Tubes
Wheelset	Select Above
Brakeset	SShimano 105 R7170
Fork	MRP Fork
Pedals	Not Included

105 Di2 12 Spd Components

Headset	FSA 55R ACR
Stem	FSA SMR
Handlebar	Select Bar Above
Seatpost	RVR Seatpost
Saddle	Fizik Vento Argo R5
Shifters	Shimano 105 R7170 Di2 12 spd
Rotors	Shimano MT800 160mm
Front Derailleur	Shimano 105 R7150 Di2 12 spd
Rear Derailleur	Shimano 105 R7150 Di2 12 spd
Crankset	Shimano 105 R7100 50/34 12 spd
Cassette	Shimano 105 R7101 11-34 12 spd
Chain	Shimano M7100 12 spd
Bottom Bracket	T47 Outboard
Tires	Select Above
Tubeless Sealant	Stan’s No Tubes
Wheelset	Select Above
Brakeset	Shimano 105 R7170
Fork	MRP Fork
Pedals	Not Included

SRAM Rival eTap AXS Components

Headset	FSA 55R ACR
Stem	FSA SMR
Handlebar	Select Bar Above
Seatpost	RVR Seatpost
Saddle	Fizik Vento Argo R5
Shifters	SRAM Rival eTap AXS
Rotors	SRAM Centerline X 160mm
Front Derailleur	SRAM Rival eTap AXS 12spd
Rear Derailleur	SRAM Rival eTap AXS 12spd
Crankset	SRAM Rival 2x 46-33 12spd
Cassette	SRAM Rival 10-36 12spd
Chain	SRAM Rival 12spd
Bottom Bracket	T47 Outboard
Tires	Select Above
Tubeless Sealant	Stan’s No Tubes
Wheelset	Select Above
Brakeset	SRAM Rival eTap AXS HRD
Fork	MRP Fork
Pedals	Not Included

Ultegra Di2 12 Spd Components

Headest	FSA 55R ACR
Stem	FSA SMR
Handlebar	Select Bar Above
Seatpost	RVR Seatpost
Saddle	Fizik Vento Argo R5
Shifters	Ultegra Di2 8170 12 spd
Rotors	Shimano MT800 160mm
Front Derailleur	Ultegra Di2 8150 12 spd
Rear Derailleur	Ultegra Di2 8150 12 spd
Crankset	Ultegra R8100 50/34 12 spd
Cassette	Ultegra R8100 11-34 12 spd
Chain	Shimano M8100 12 spd
Bottom Bracket	T47 Outboard
Tires	Select Above
Tubeless Sealant	Stan’s No Tubes
Wheelset	Select Above
Brakeset	Ultegra 8170
Fork	MRP Fork
Pedals	Not Included

Geometry

Size Guide

Geometry

Size	XS	S	M	ML	L
Stack	53	55	57	59	60.5
Reach	37	37.5	38	38.5	39
Virtual TT Length	51.6˚	52.1˚	54.3˚	56˚	57˚
Head Tube Length	11.9	13.6	15.6	17.7	19.2
Seat Tube Length	44	47	50	53	56
Head Tube Angle	70°	71°	72°	72.5°	73°
Seat Tube Angle	74.5°	74.5°	74°	73.5°	73.5°
Chainstay Length	41.5	41.5	41.5	41.5	41.5
BB Drop	7.4	7.4	7.2	7.0	7.0
Wheelbase	99.4	99.7	100	100.7	101.2
Front Center	59.1	59.3	59.6	60.2	60.7
Fork Offset	4.7	4.7	4.7	4.7	4.7
Standover Height	73.9	76.5	79.2	82	83.5

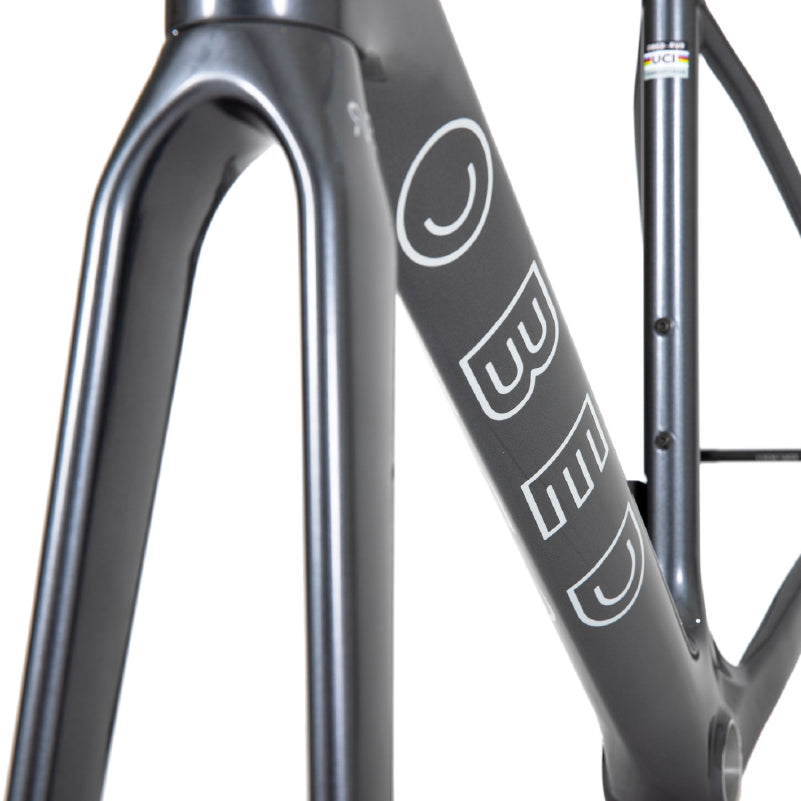

Frame Details

Frame Specs

Frame Material	High Modulus Carbon Blend
Frame Characteristic	High Strength
Frame Weight	1020 Grams (Size M)
Max Tire	700 x 34+
Headset Spec	52mm Internal
Front Spacing	100mm
Rear Spacing	142mm
Front Axle Specs	M12 x 1.5 120-125mm
Rear Axle Specs	M12 x 1.0 164-167mm
Seatpost	Proprietary Aero Carbon
Seatpost Binder	Internal
BB Standard	T47
Max Chainring Size	54T
Rotor Max Size (Front)	160mm
Rotor Max Size (Rear)	160mm
Front Derailleur Mount	Braze-on
Derailleur Hanger	UDH
Water Bottle Mounts	Downtube, Seattube
Cable Routing	Internal Cable Routing

Learn More

Assembly

OBED bikes are completely assembled, test ridden, and then carefully disassembled only as far as needed for shipping. Your bike will arrive tuned and ready to ride after installing your front wheel, seatpost, and pedals.

Owner's Manual

30 Day Satisfaction Guarantee

Put your new bike to the test with our 30 day return policy. If it's not for you, just box it up the way you received it and contact our support team through website chat or by calling (800) 229-0198 for further instruction.

Returns

We offer hassle-free returns. If for any reason you need to return your bike, contact customer service through website chat or by calling (800) 229-0198 and we can arrange for your bike to be picked up.

Click it. Ship it. Rip it.

OBED bikes ship pre-assembled to your doorstep with a simple setup process. You'll be on a new adventure in no time. Not sure OBED is right for you? Put your new bike to the test with our 30 day return policy.

Explore Shipping Options
